Description
1

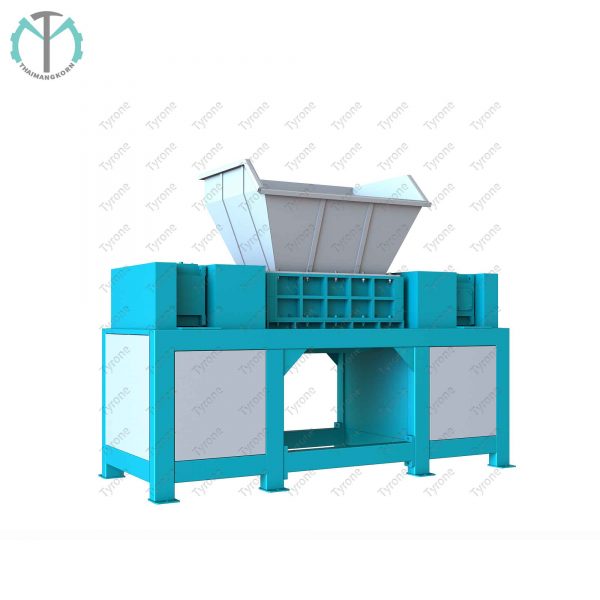

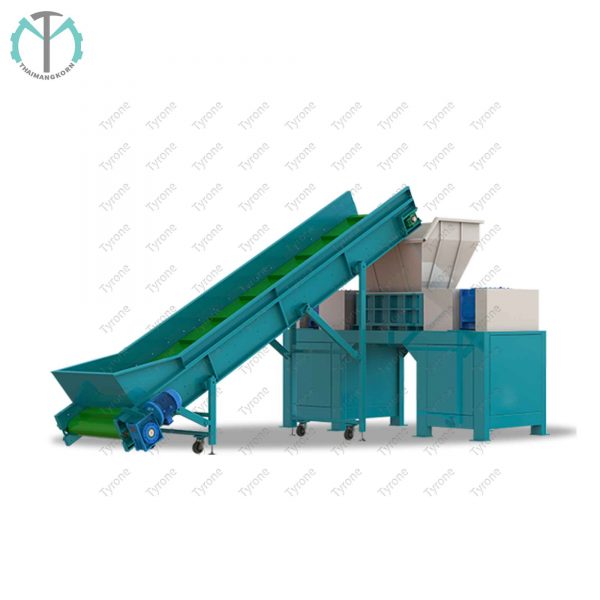

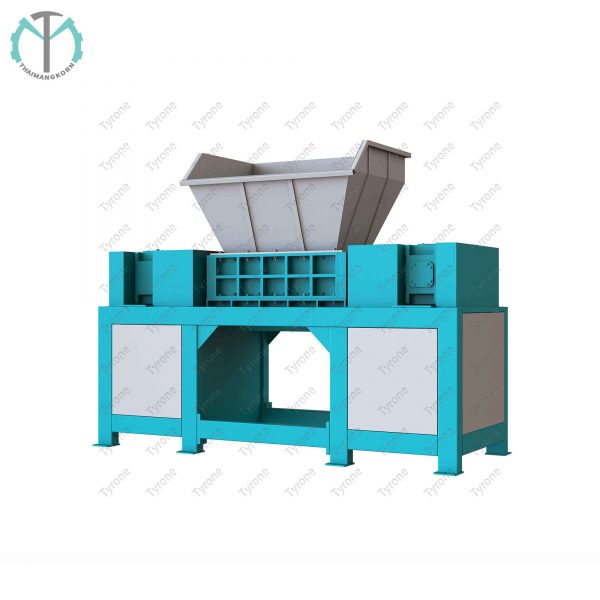

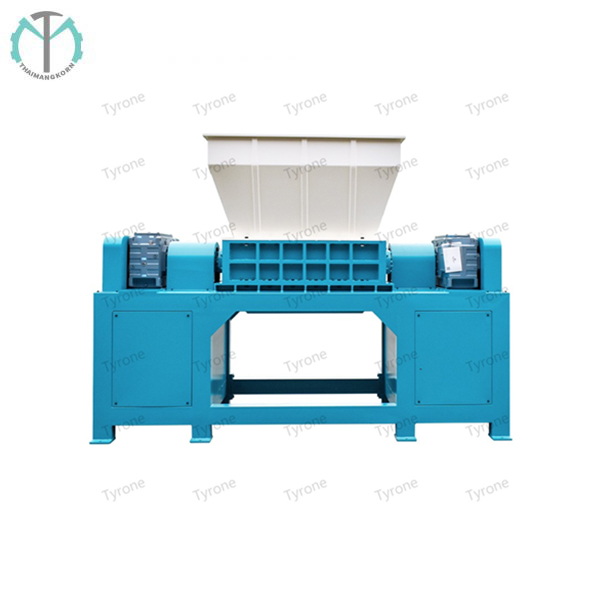

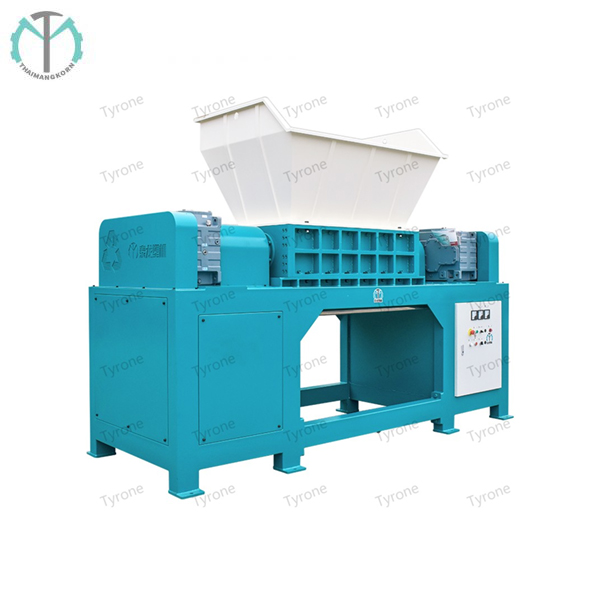

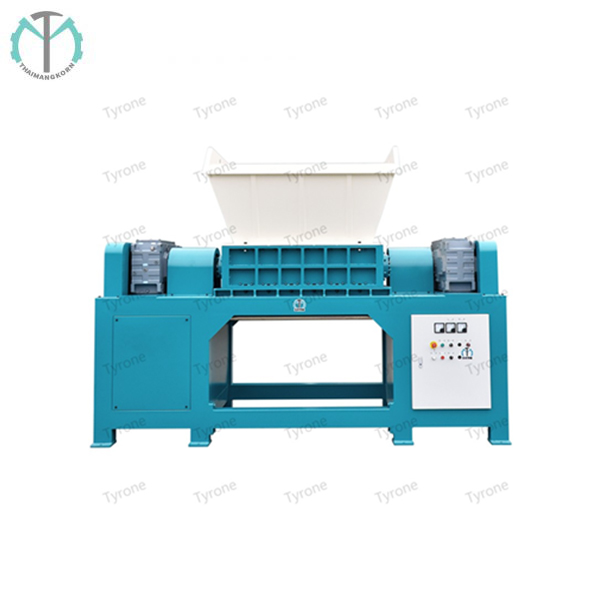

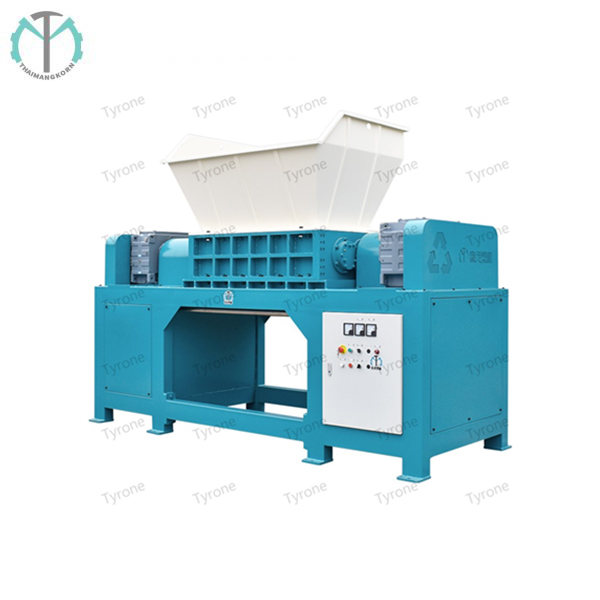

1: The TL series crusher are widely used in various plastic products.
Such As: car shell,tires,refrigerator,TV,washing machine,plastic bucket,packaging box,plastic tray,medical waste,industrial waste,kitchen waste,organic waste,hard disk,documents.

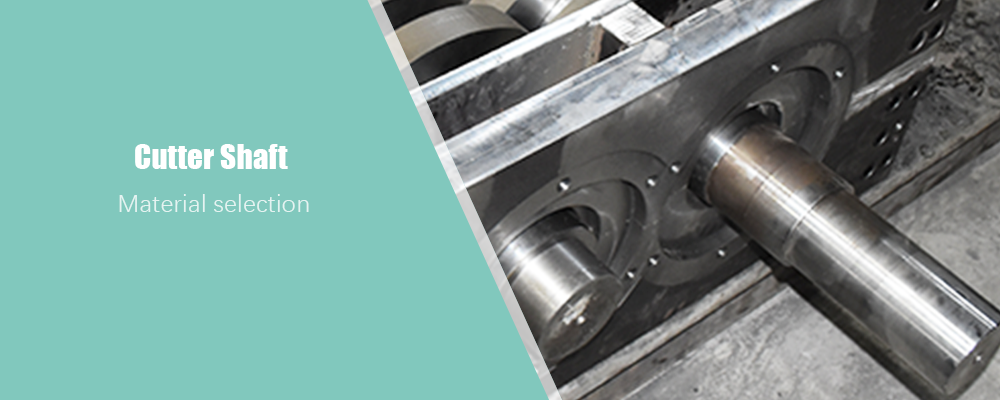

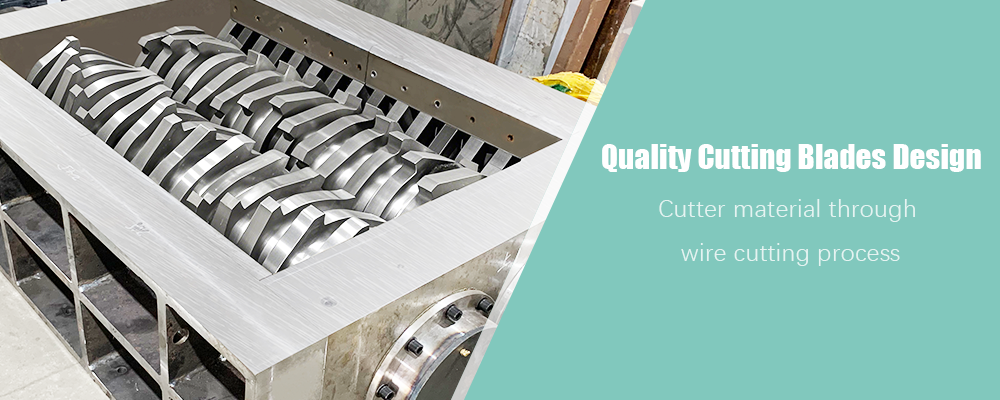

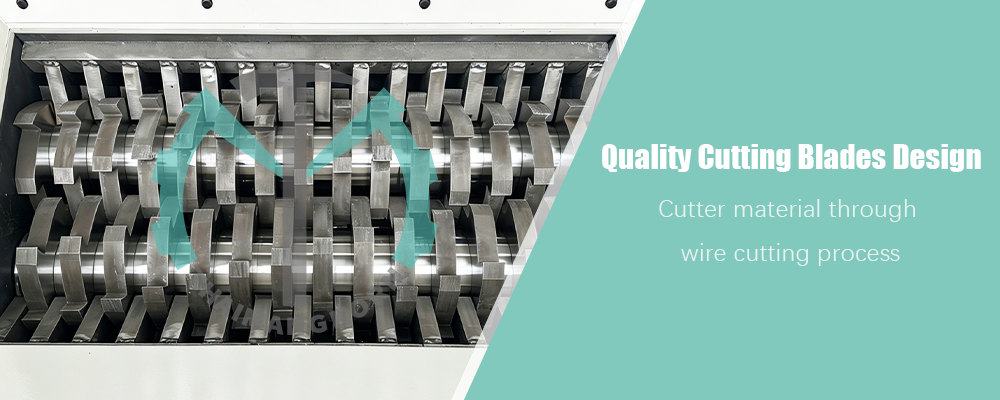

2: The blade is made of special alloy steel,strong and durable with long service life.

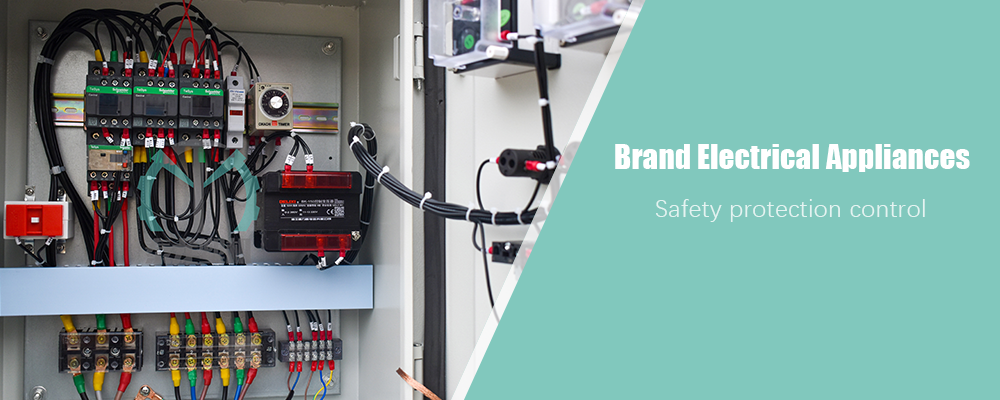

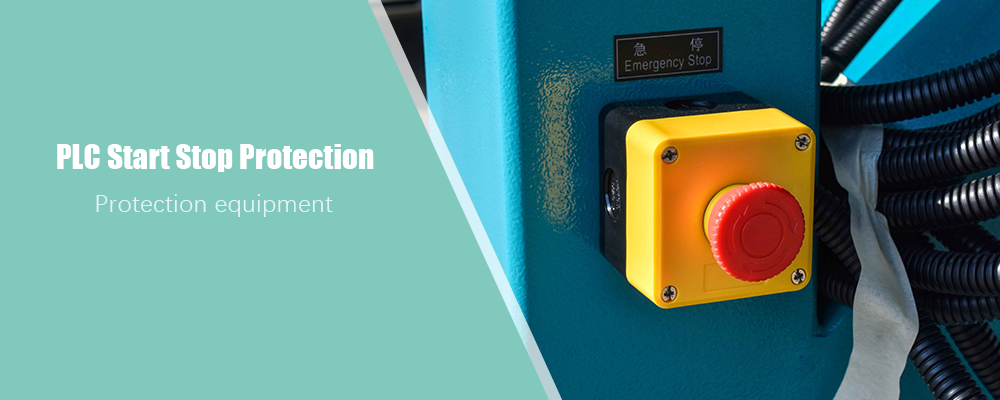

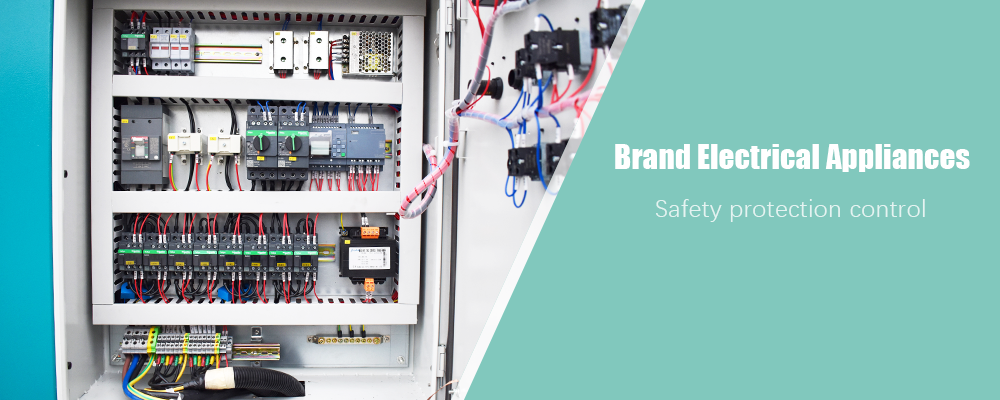

3: The shredder is standard configuration with Siemens PLC automatic control system,equipped with start,stop,reverse and overload automatic protection functions,with low speed,low noise,low dust,high output and other characteristics.
4: Capacity: 200-20000 kg/h Weight: 300-7000kg.
1
| Model | Motor Power |
Chamber Size |
Cutter Number |
Cutter Thickness |
Rotator Diameter |
Overall Dimension |
Shredding Ability |
Weight |
| (unit) | hp | mm | / | mm | mm | mm | kg/h | kg |
| TL300 | 3 | 300*300 | 26 | 11 | Φ165 | 900*500*1065 | 200-300 | 300 |
| TL400 | 3/4 | 402*300 | 34 | 11 | Φ165 | 1000*500*1065 | 300-400 | 400 |
| TL600 | 10 | 600*400 | 30 | 20 | Φ220 | 1500*1230*1750 | 500-800 | 1350 |
| TL800 | 20+20/25+25 | 800*600 | 20 | 40 | Φ300 | 2980*1350*2480 | 1000-2000 | 2800 |
| TL1000 | 25+25 | 1000*600 | 25 | 40 | Φ300 | 3200*1350*2480 | 2500-3500 | 3600 |
| TL1200 | 30+30 | 1200*600 | 30 | 40 | Φ300 | 3500*1800*2600 | 3000-5000 | 4600 |
| TL1400 | 30+30 | 1410*810 | 28 | 50 | Φ400 | 3700*2200*2650 | 5000-20000 | 7000 |
3
What is a plastic machine called?
The main machine is usually called the host, and its accompanying equipment are called the plastic auxiliary equipment. Plastic extruders can make plastic film/wrapping, packing tape, corrugated sheets, plastic lumber, pipes, tubes, insulated wire, monofilament and nets.
Â
Is there a plastic shredder?
Tyrone Industrial Plastic Shredders For Processing Plastics
Tyrone plastic shredder machines can shred ABS, Acetal, Acrylic, HDPE, HMWHDPE, LDPE, LLDPE, Nylon, Nylon 6, Nylon 66, PC, PET, Polyamide, Polyester, PP, PS, PU, PUR, PVC, TPE, TPO, and UHW-PE, as well as composites.
Â
Can you crush plastic?
Crushing plastic bottles into smaller pieces makes them easier to recycle. This is because smaller pieces are easier to handle and melt down into new raw materials. According to a study from the University of Toronto, crushing plastic bottles into smaller pieces can increase their recyclability to as high as 90%.
| Weight | 300-7000 kg |
|---|---|
| Dimensions | 2980 × 1350 × 2480 cm |
| Shredding Ability | 200-20000(kg/h) |
| Main Powe | 3-30+30(hp) |
