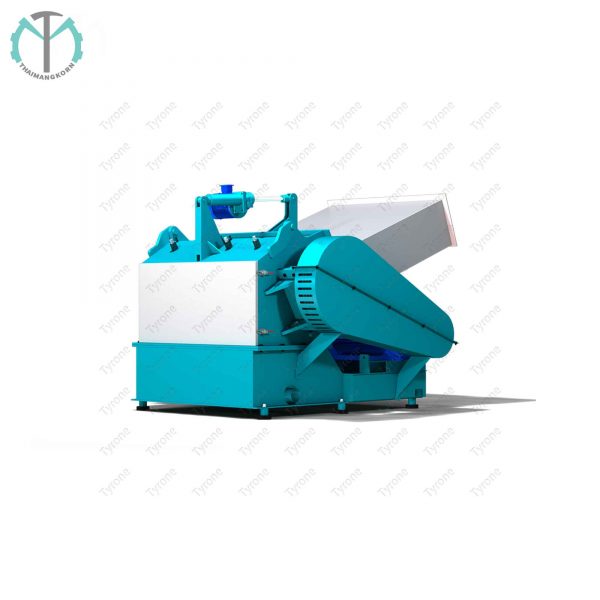

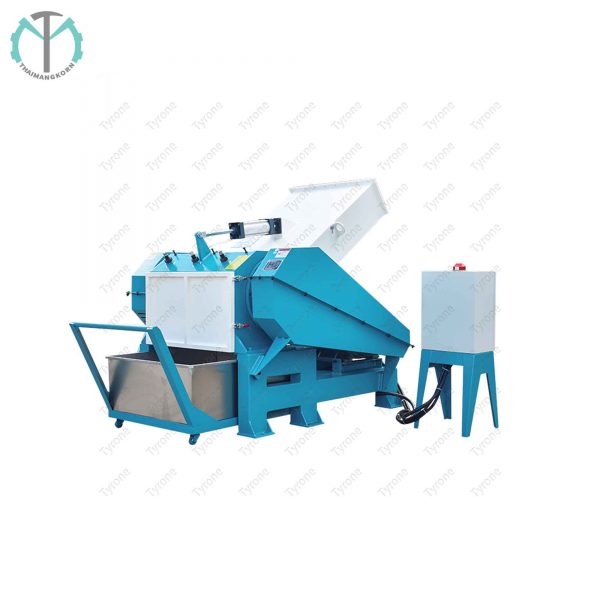

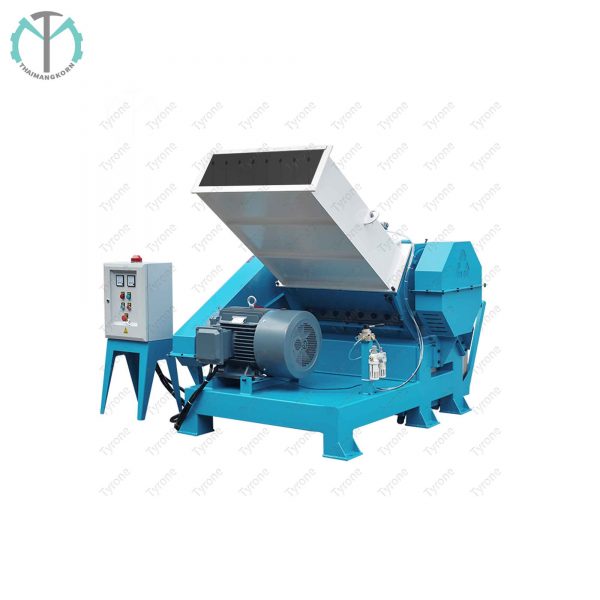

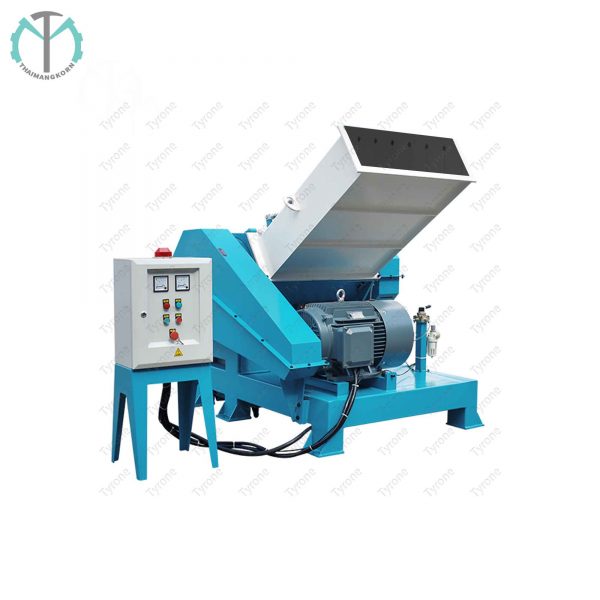

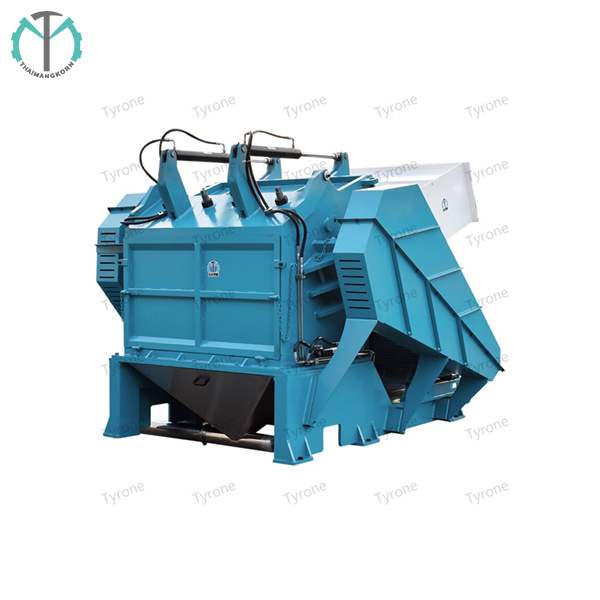

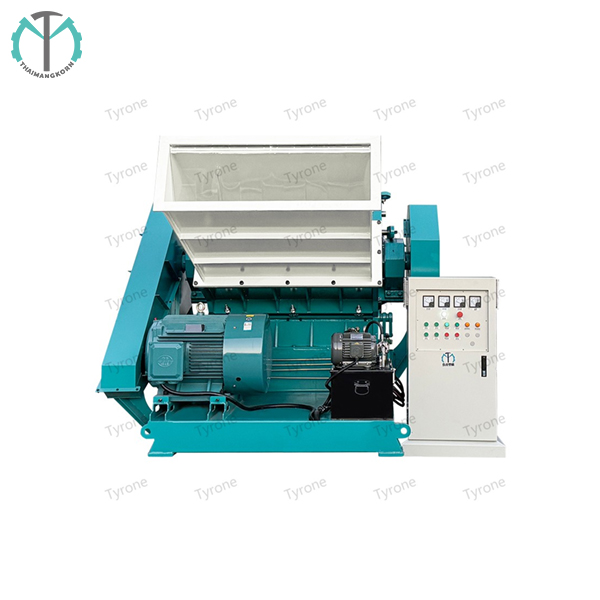

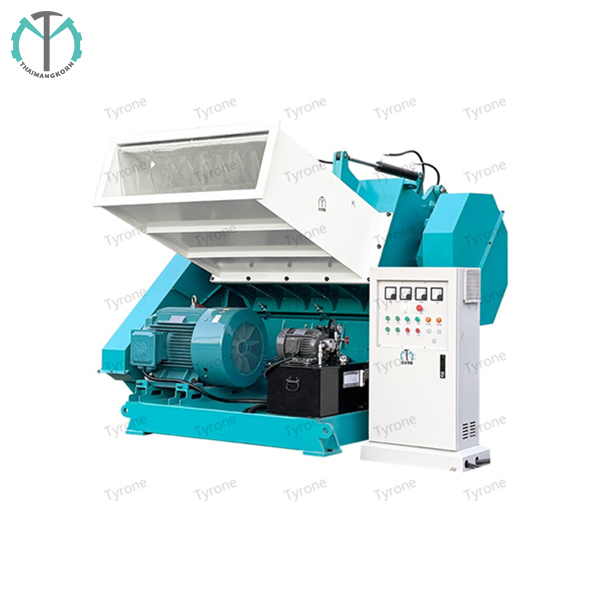

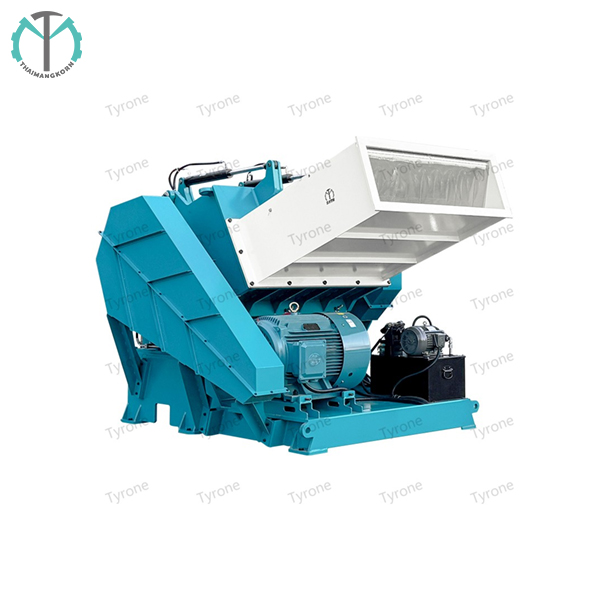

Pipes Plates Pallet Plastics Waste Crusher Shredder Machine

1: The TLG series crusher are widely used in various plastic products.
Such As: pipes/plates/plastic doors and windows.

2: Optional auxiliary equipment can be selected.

Such As: conveyor belt feeder, immediate recycling system, immediate recycling dust removal system,metal separator, powder screening system, etc.

3: Above use open type crushing chamber,independent external bearing seat prevents dust form entering the bearing and prolongs the life of the machine.

4: Nnique crushing chamber and feeding hopper design:The TLG series plastic crusher adopts a unique crushing chamber design and feeding hopper design, which is specially designed for recycling large-width plastic products such as plastic pallets, plates, pipes, plastic doors and windows. It is not limited to the length of the plastic and can easily improve the recycling efficiency.

5: Capacity: 280-1200 kg/h Power: 11-37Kw.

Advantage

Certification

EU standard CE certificate and SGS, ISO9001, AAA enterprise certification, etc., multiple safety certifications and corporate strength certifications.

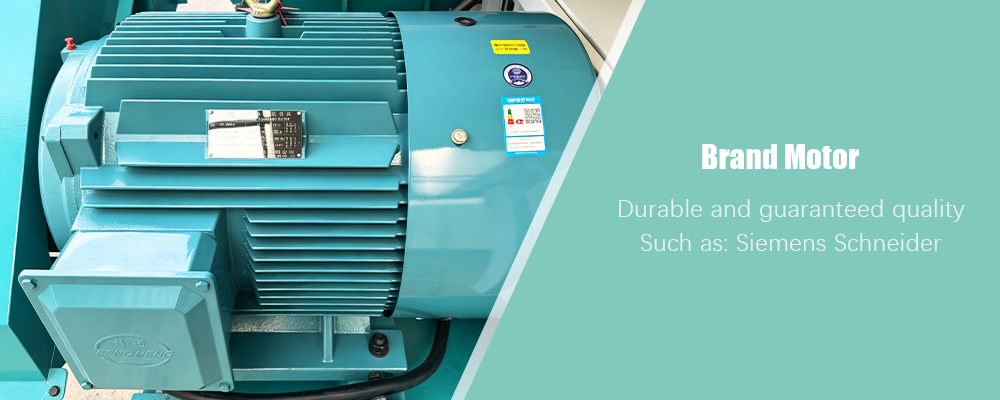

Pure Copper Motor

Overload protection protects human and machine safety, stable performance, low failure rate, and long life.

Round Hole Sieve Mesh

Customized mesh can be made as needed, with a tapered hole design for fast discharge speed, uniform particle size, and minimal dust.

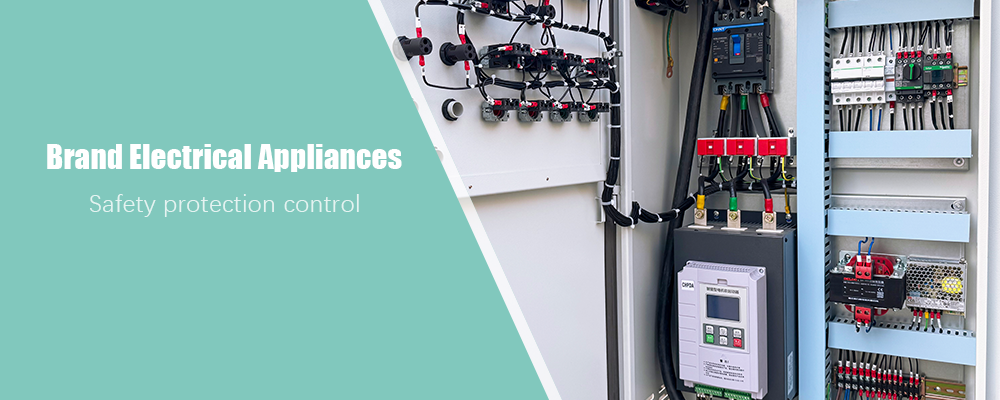

Quality Electrical Controller

Siemens & Schneider PLC Brand Electrical Controller.

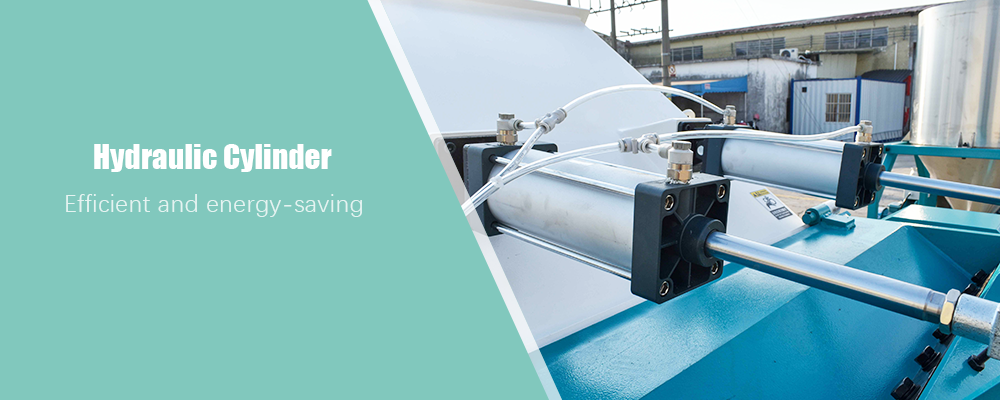

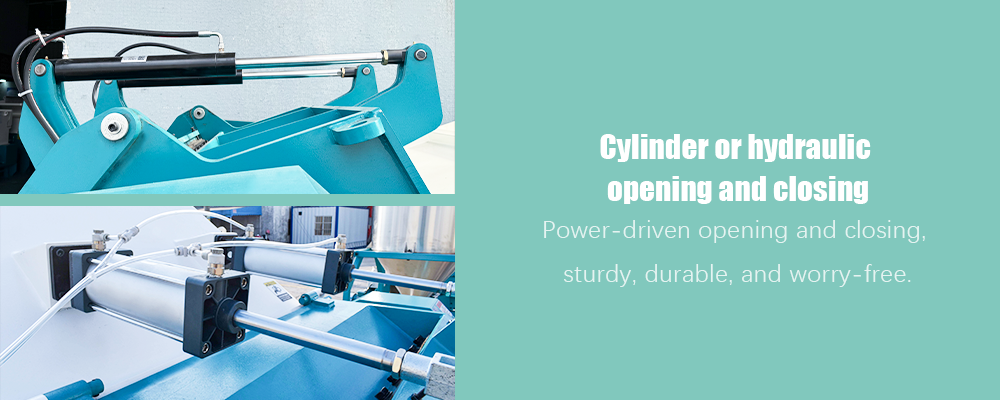

Hydraulic Cylinder

Hydraulic cylinder converts hydraulic energy into mechanical energy, driving the opening and closing of the feeding port to achieve efficient,

fast and safe purposes.

Pure Copper Motor

Overload protection protects human and machine safety, stable performance, low failure rate, and long life.

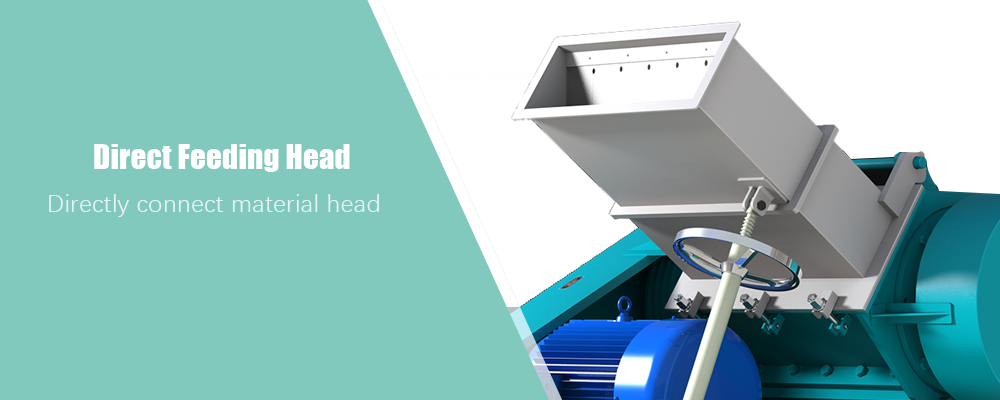

Direct Feeding Head

Directly connect material head.

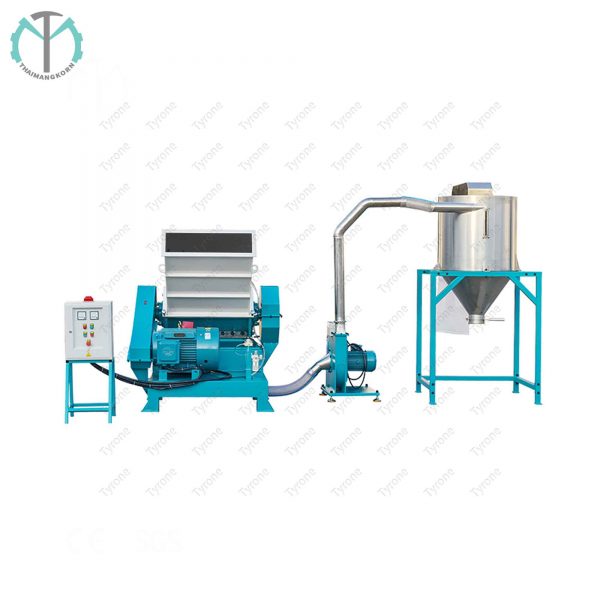

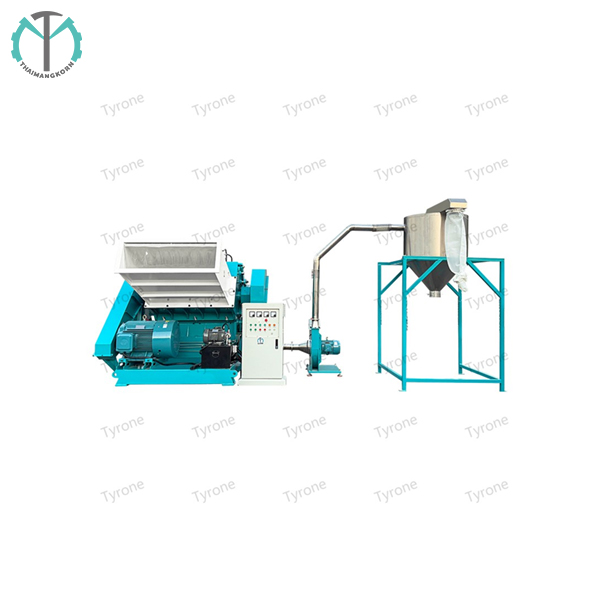

Crusher Shredder Adaptation System

Optional recycling system for broken waste items.

Parameter

ModelDiameter
Rotation
Crushing AbilityRotatory BladeFixed BladePowerRotate SpeedMesh SizeOverall DimensionWeight
(unit)mmkg/h//HPKWr/minmmmmkg
TLG6060Φ500350-9003025037480142250*1360*21002600
TLG6032Φ285120-40018/642015520101250*1170*1350850
TLG8146Φ355300-80024/644030500141600*1420*17001850
TLG8256Φ420400-90024/645037500141650*1510*17302200
TLG1065Φ480600-130030/1246045500141700*1730*18002800
TLG1265Φ560750-150018/647555480162320*2150*19003300
TLG1283Φ7201000-200018/6410075460162750*2150*21505500

Case

Applicable materials

                           Pipes                         Plastic                     Plastic Doors                 Plastic Windows

Faqs

What is the difference between plastic shredder and crusher?

Plastic crusher: It is more commonly used to process smaller and thinner plastic waste, such as plastic bottles, plastic films, plastic pipes, etc. Plastic shredder: Because it mainly handles large materials, its processing capacity is relatively large and it can handle larger-sized plastic waste.

Description

Waste and Recycling

By converting waste into valuable products, it can not only reduce waste generation and environmental pollution,

but also provide consumers with a unique product experience and meet market demand.

Energy Saving

Simple measures, such as choosing energy-efficient appliances, can significantly reduce our energy consumption.

OEM/ODM Service

Can be processed and customized according to customer needs and also provide customers with high-end customized services.

Attentive Service

Before Service
We will provide professional product knowledge and product drawing design support for pre-sales service technology and business support.

Technical Support
Tyrone provides efficient and professional technical support to solve the problem of crushing and recycling.

Spare Parts
The spare parts of the original machine are fully equipped to meet the urgent needs of customers for spare parts.

Response
Positive resonse within 24 hours online.

Installation Test
All equipment has been pre-assembled and tested before shipment and training for machine use and maintenance is provided.

Additional information

Power

11-37(kw)

Crushing Ability

280-1200(kg/h)
