Slow Speed PVC Pulverizer Plastic Crushing Shredder Grinder Machine

1: The TLS series crusher are widely used in various plastic products.
Such As: Elastomer plastic degraded evengranular material.

2: Full open crusher,simple quick cleaning;No sieve design

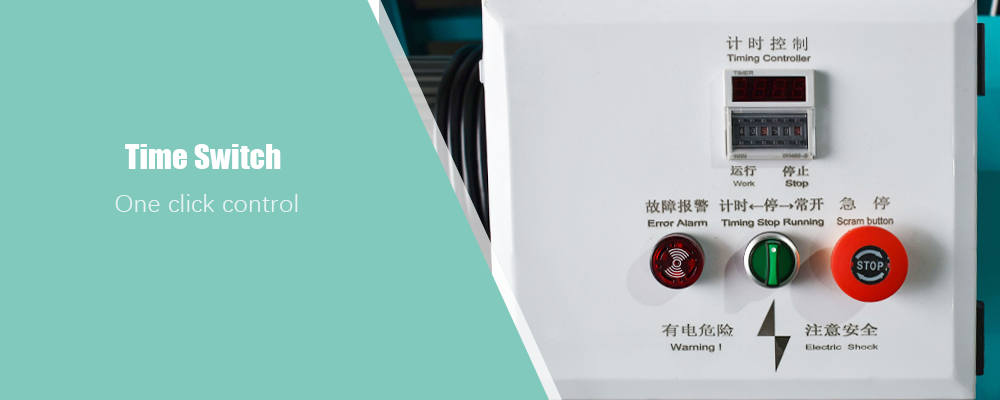

3: Standard configuration cycle timer,can automatically control the operation and stop,saving energy consumption.

4: Capacity: 15-50 kg/h Power: 1.1-3.75 Kw.

Description

High Safety Factor

Adopt EU CU standard,multiple safety protection devices to ensure the safety of operators and machines.



Waste and Recycling

By converting waste into valuable products, it can not only reduce waste generation and environmental pollution,

but also provide consumers with a unique product experience and meet market demand.

Energy Saving

Simple measures, such as choosing energy-efficient appliances, can significantly reduce our energy consumption.

OEM/ODM Service

Can be processed and customized according to customer needs and also provide customers with high-end customized services.

Advantage

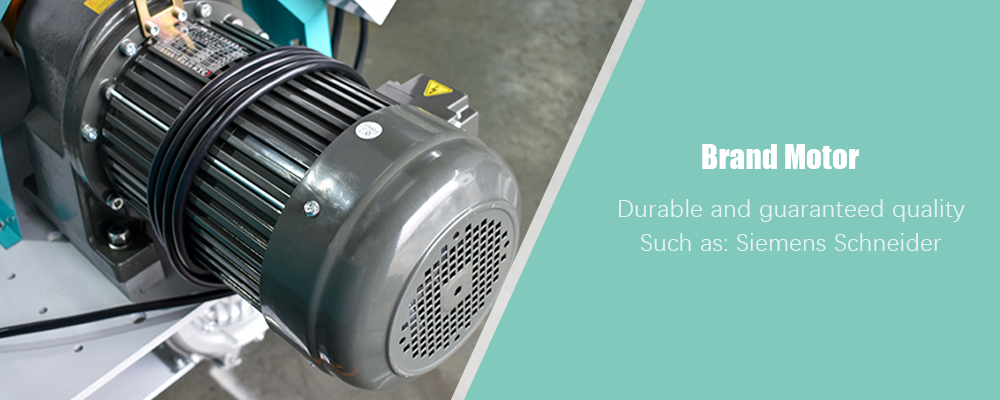

Pure Copper Motor

Overload protection protects human and machine safety, stable performance, low failure rate, and long life.

Quality Electrical Controller

Siemens & Schneider PLC Controller

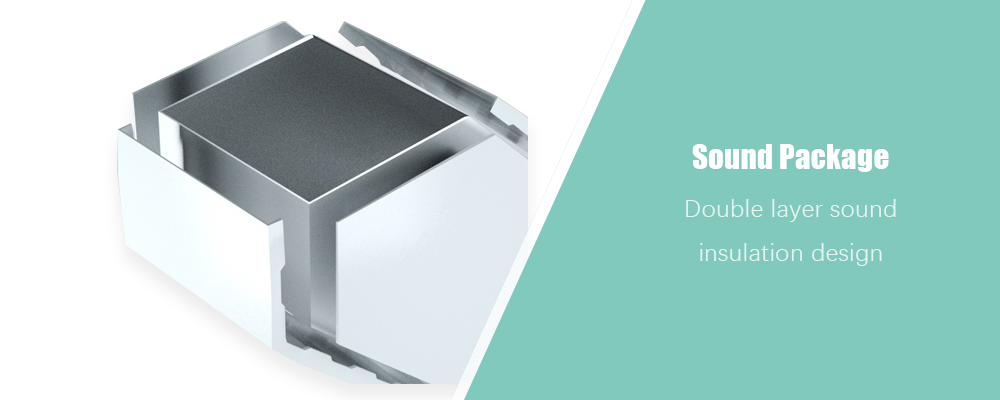

Double layer sound insulation

Adopting a double-layer stainless steel unit structure, it provides sound insulation, noise reduction, and easy cleaning

Double layer sound insulation

Parameter

Model unit TLS-250 TLS-315 TLS-410 TLS-420-1
Crushing Chamber Dimensions mm 250*250 315*315 410*315 440*400
Crushing Ability kg/h 15-20 20-30 25-35 40-50
Rotatory Blade   2 2 3 3
Fixed Blade   6 6 8 8
Motor Power HP 1.5 2 3 5
KW 1.1 1.5 2.2 3.75
Air Pump Power HP 0.5 0.75 0.75 0.75
  KW 0.37 0.55 0.55 0.55
Rotate Speed r/min 23 23 23 23
Overall Dimension mm 900*450*1200 1120*500*1480 1200*500*1560 1200*600*1600
Weight kg 205 275 315 420

Case

Applicable materials

                      Soft Rubber                  Degraded Material               Defective Material                      Plastic Parts

Faqs

Can you pulverize plastic?
In general, plastics are excellent in impact resistance, so it is very difficult to pulverize them as they are. Especially when pulverizing to a particle size of 0.5 mm or less, the pulverization time is lengthened or repeatedly put into the pulverizer several times.



Is there a machine that can decompose plastic?
Yes - Shredders Machine
Plastic shredders are used to break down large pieces of plastic into plastic flakes material.



How to turn plastic into a powder?
A plastic pulverizer machine, also known as a plastic mill or grinder, is a mechanical device used to grind plastic materials into fine powders or particles.

Attentive Service

Before Service
We will provide professional product knowledge and product drawing design support for pre-sales service technology and business support.

Technical Support
Tyrone provides efficient and professional technical support to solve the problem of crushing and recycling.

Spare Parts
The spare parts of the original machine are fully equipped to meet the urgent needs of customers for spare parts.

Response
Positive resonse within 24 hours online.

Installation Test
All equipment has been pre-assembled and tested before shipment and training for machine use and maintenance is provided.

Additional information

Power

0.37-0.75(kw)

Crushing Ability

15-50(kg/h)
