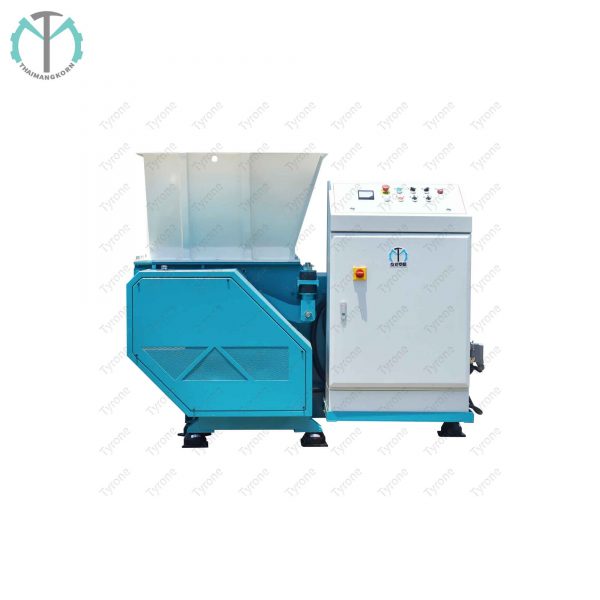

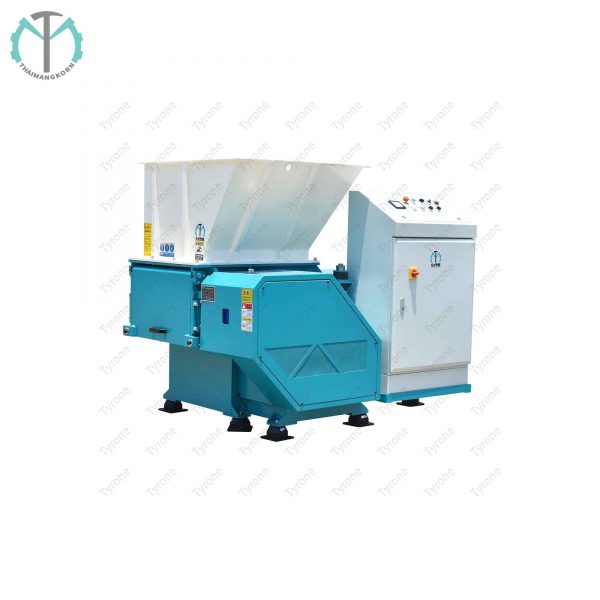

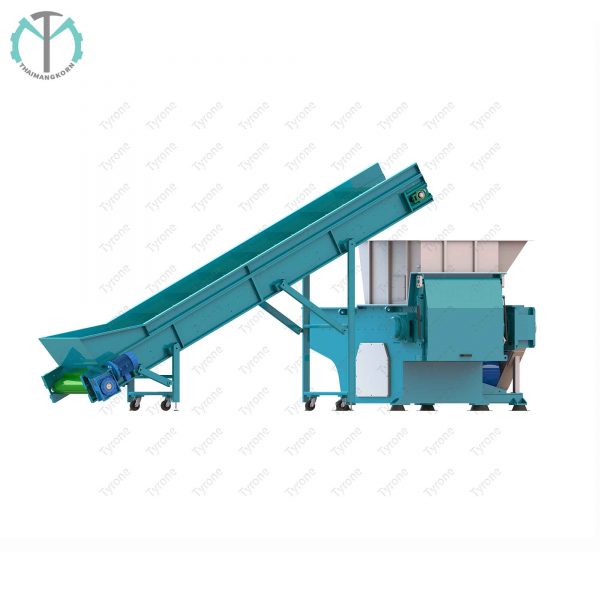

Industry Waste Single Shaft Plastics Crusher Shredder Machine

1.TW Series Single shaft shredder is suitable for crushing plastic, rubber, filber and other solid materials, such as lump, thick platethickened pipe wood, film materials and winding materials. it can also be used for general plastic.

2.TW SeriesChoose different structures of blade shaft according diferent materials, such as ordinary blade shaft, film blade shafthard material blade shaft, etc., can also be used in different direction after the blade consumed.

3.TW SeriesSingle shaft shredder bearing external, effectively avoid dust into the bearing, set up refueling nozzle to faclitate regular maintenance.,Adopt hardened gears, safe and stable, equipped with water cooling function.

4:Capacity: 200-20000 kg/h Power: 18.5-90Kw.

Category
Learn more

Advantage

Certification

EU standard CE certificate and SGS, ISO9001, AAA enterprise certification, etc., multiple safety certifications and corporate strength certifications.

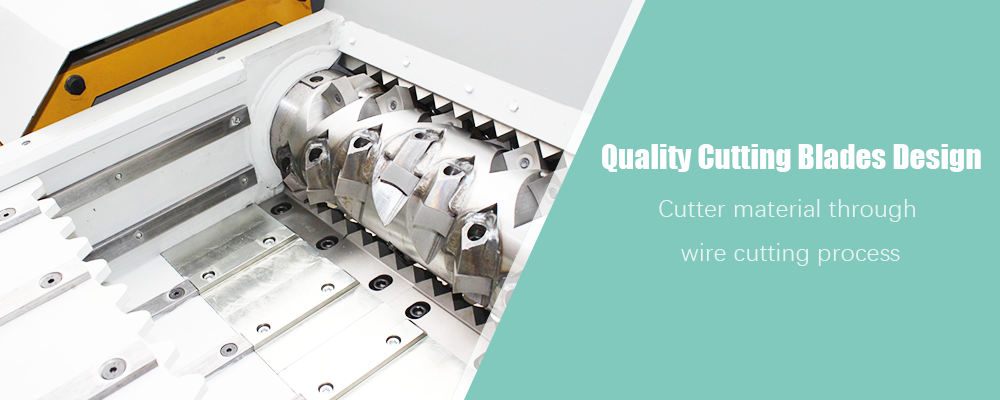

Quality Cutting Blades Design

The cutting blades is made of high-strength alloy blades steel, which has high hardness and strong wear resistance.

Round Hole Sieve Mesh

Customized mesh can be made as needed, with a tapered hole design for fast discharge speed, uniform particle size, and minimal dust.

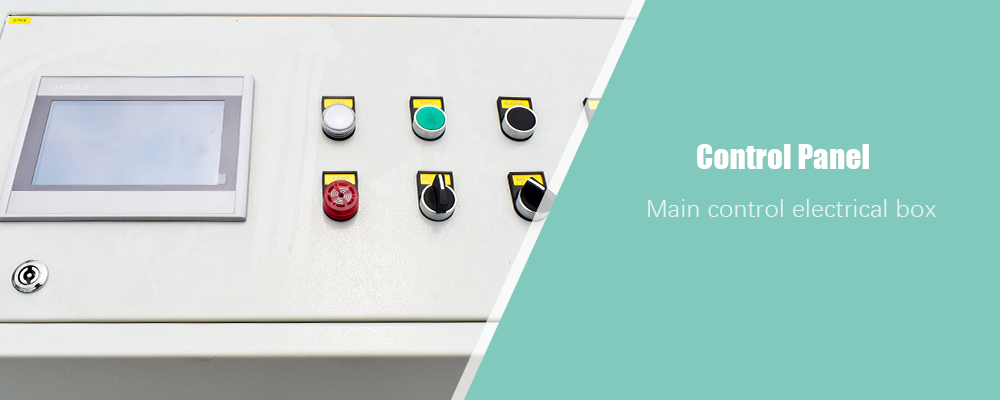

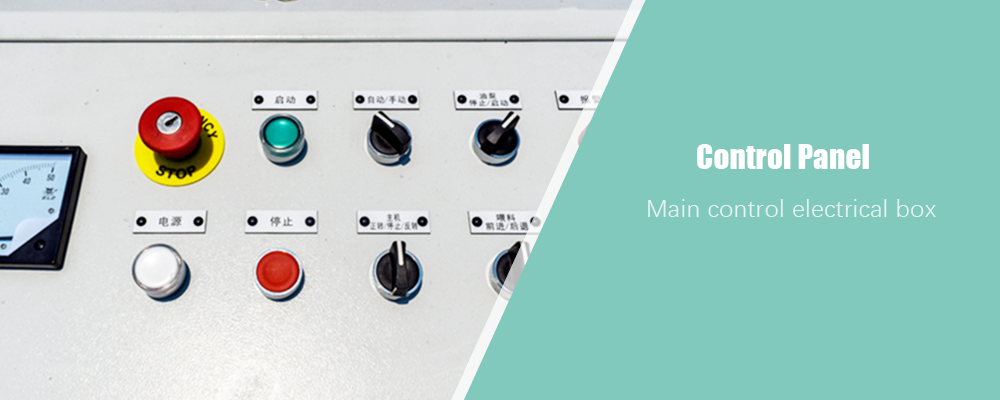

Control Panel

Single shaft shredder is standard configuration with Siemens PLC automatic control system,equipped with start,stop,reverse and overload automatic protection.

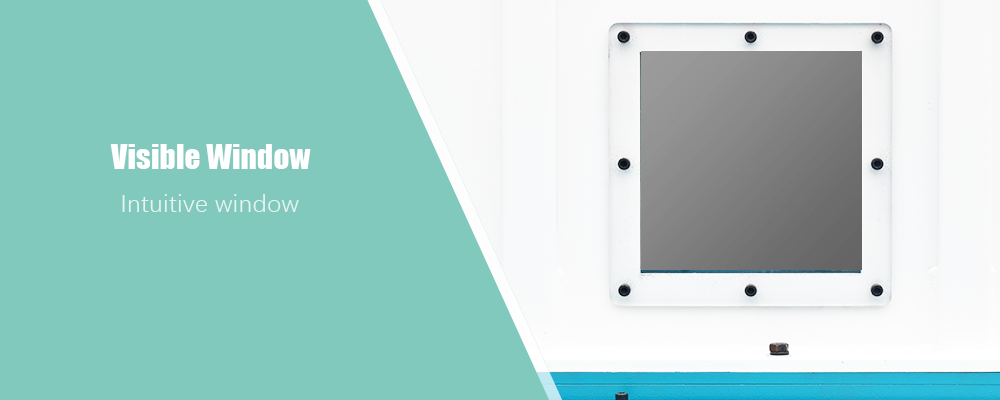

Visible Window

The internal crushing process of broken items is clear at a glance.

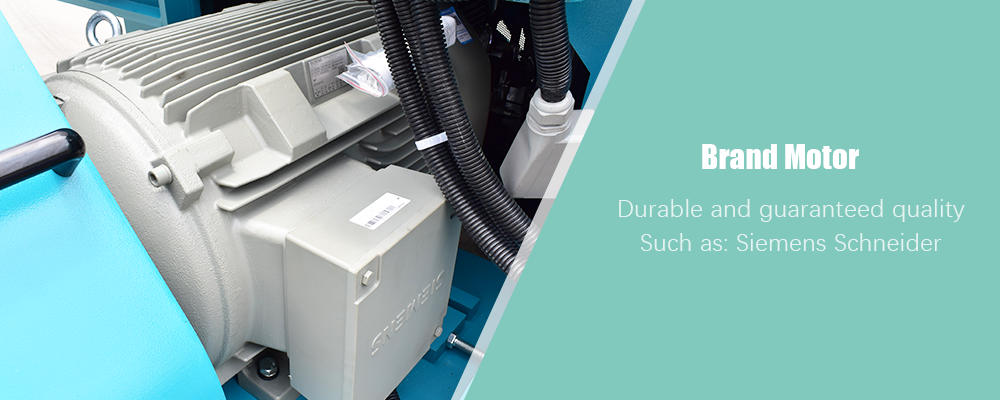

Pure Copper Motor

Overload protection protects human and machine safety, stable performance, low failure rate, and long life.

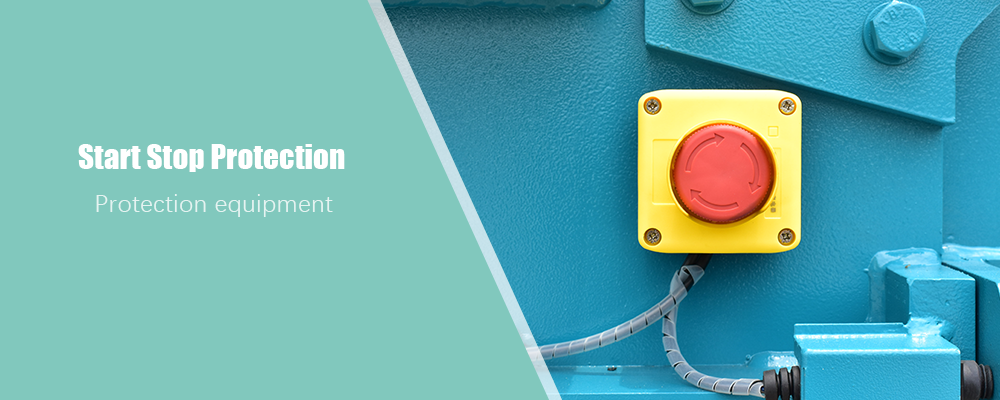

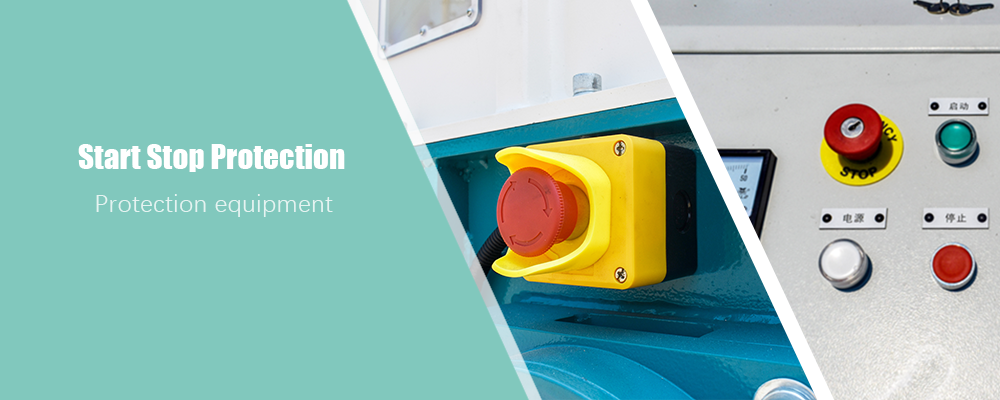

Start Stop Protection

Automatic control system, equipped with start/stop/ reverse and overload automatic protection functions.

Parameter

ModelRotator
Diameter		Screen
Hole Diameter		Rotatory BladeFixed BladePowerOil cylinder
distance		Hydraulic
Power		Overall DimensionWeight
(unit)mmmm///KWmmkWmmkg
TW2260Φ2204023+42+2/18.55002.21800*1300*17001650
TW4080Φ4004035+42+2/378153.752800*1770*19503950
TW40100Φ4004045+42+2/458153.752800*1980*19504250
TW40120Φ4004055+42+2/558155.52800*2400*21005250
TW40150Φ4004078+43+3/758155.52800*2650*21006650
TW48150Φ4804084+63+3/9011007.53700*2800*250011000

Case

Application of single shaft shredder:

The single shaft shredder machine is widely to recycle solid wastes, such as plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc.It is an ideal machine for the size reduction of a wide range of different materials:

         1. Refuse-derived fuel: straw, municipal solid waste;
         2. Textile: cloth fiber, nylon;
         3. Paper: industrial waste paper, packing paper, cardboard paper;
         4. Cable wires: copper core cable, aluminum cable, composite cables;
         5. Polypropylene pipe, industrial packaging & plastic films, PP woven bags;
         6. Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums.


Applicable materials

                   Rubber Materials                    Solid Materials                     Thick Plate                    Film Materials

Working Videos

                                     ABS Plastic

                                       Waste Plastic

                               Plastic Adhesive Head

Faqs

How to deal with tool wear of single axis shredder?
Regularly check the wear of cutting tools. If blade wear is found, professional sharpening tools can be used to restore the sharpness of the blade, but attention should be paid to the degree of polishing. When the tool is severely worn and cannot be restored by grinding, it should be replaced in a timely manner, and the new tool should be installed correctly according to the machine’s instructions, and a trial run should be conducted to ensure the shredding effect.



Does the TW single-shaft shredder have PLC system?
The main electrical components are from well-known brands such as Siemens and Schneider. The PLC control system enables real-time monitoring, alarms, remote analysis, and data analysis.

Description

Waste and Recycling

By converting waste into valuable products, it can not only reduce waste generation and environmental pollution,

but also provide consumers with a unique product experience and meet market demand.

Energy Saving

Simple measures, such as choosing energy-efficient appliances, can significantly reduce our energy consumption.

OEM/ODM Service

Can be processed and customized according to customer needs and also provide customers with high-end customized services.

Attentive Service

Before Service
We will provide professional product knowledge and product drawing design support for pre-sales service technology and business support.

Technical Support
Tyrone provides efficient and professional technical support to solve the problem of crushing and recycling.

Spare Parts
The spare parts of the original machine are fully equipped to meet the urgent needs of customers for spare parts.

Response
Positive resonse within 24 hours online.

Installation Test
All equipment has been pre-assembled and tested before shipment and training for machine use and maintenance is provided.

Additional information

Weight1650-11100 kg
Dimensions2800 × 1980 × 1950 cm
Motor Power

18.5-90(kw)

Oil Cylinder Diatance

500-1100(mm)
