1: The TLPP series crusher are widely used in various plastic products.
Such As: waste produced fater injection molding,blow molding,extrusion molding.
2: Optional auxiliary equipment can be selected.
Such As: conveyor belt feeder, immediate recycling system, immediate recycling dust removal system,metal separator, powder screening system, etc.

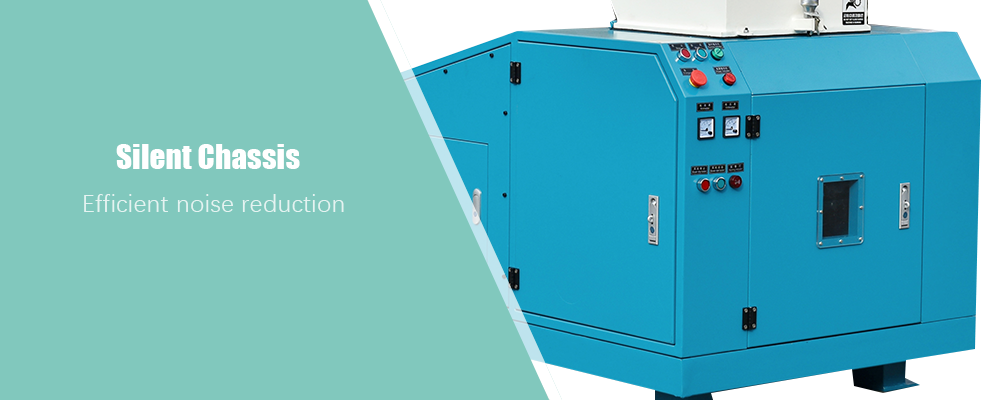

3: The cursher adopts fully enclosed structure and is equipped with sound insulation device,which can effectively reduce the soft plastics,and about 85-105dB when crushing hard plastics.
4: Capacity: 100-1300 kg/h Power: 7.5-45Kw.
By converting waste into valuable products, it can not only reduce waste generation and environmental pollution,
but also provide consumers with a unique product experience and meet market demand.
Simple measures, such as choosing energy-efficient appliances, can significantly reduce our energy consumption.
Can be processed and customized according to customer needs and also provide customers with high-end customized services.
Overload protection protects human and machine safety, stable performance, low failure rate, and long life.

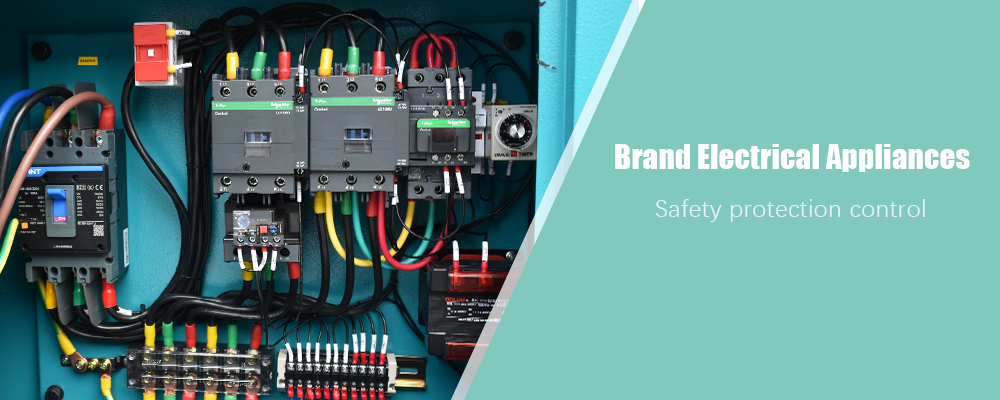

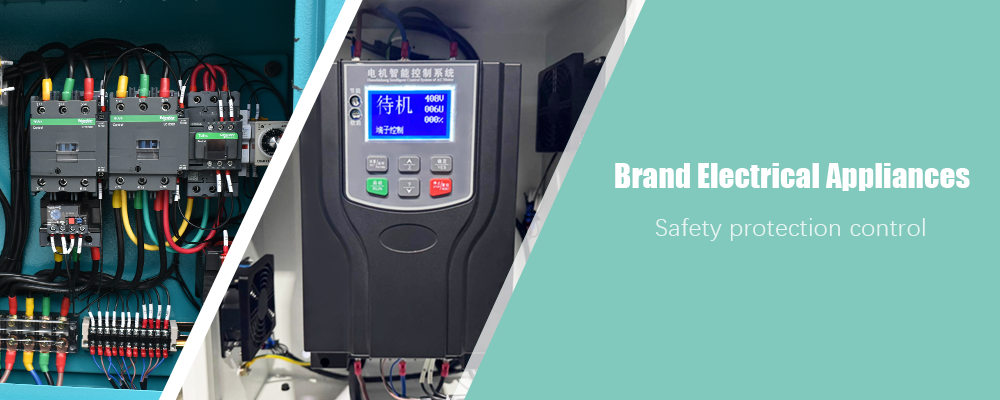

Siemens & Schneider PLC Controller
| Model | Crushing Chamber |
Crushing Ability |
Rotatory Blade(TLPP) | Rotatory Blade(TLEP) | Fixed Blade(TLPP) |
Fixed Blade(TLEP) |
Power | Rotate Speed |
Mesh Size |
Overall Dimension |
Weight | |
| (unit) | mm | kg/h | / | / | / | / | HP | KW | r/min | mm | mm | kg |
| 4132 | 410*320 | 100-300 | 12 | 6 | 2 | 2 | 10 | 7.5 | 520 | 8 | 1200*970*1635 | 680 |
| 5132 | 510*320 | 150-350 | 15 | 6 | 2 | 2 | 15 | 11 | 520 | 10 | 1300*1070*1846 | 850 |
| 6033 | 600*330 | 200-500 | 18 | 6 | 2 | 2 | 20 | 15 | 520 | 10 | 1350*1200*1908 | 1100 |
| 7246 | 720*460 | 250-700 | 21 | 6 | 4 | 4 | 30 | 22 | 500 | 12 | 1700*1430*2340 | 1800 |
| 8146 | 810*460 | 350-750 | 24 | 9 | 4 | 4 | 40 | 30 | 500 | 14 | 1720*1510*2296 | 2200 |
| 8256 | 820*560 | 350-900 | 24 | 9 | 4 | 4 | 50 | 37 | 500 | 14 | 1850*1560*2520 | 2700 |
| 1065 | 1020*560 | 450-1200 | 12/30 | 12 | 4 | 4 | 60 | 45 | 480 | 14 | 2145*1800*2755 | 3500 |
| 1265 | 1020*650 | 550-1300 | 36 | 12 | 4 | 4 | 60 | 45 | 480 | 14 | 2145*2000*2755 | 4300 |
| Injection Molded | Molded Bottle | Leftover Materials | Plastic Materials |
How to crush plastic into powder?
A plastic pulverizer machine works by using a series of rotating blades or hammers to crush and grind plastic materials into smaller pieces. The process begins with the plastic material being fed into the machine through a hopper.
How can you tell what type of plastic something is?
Marked symbols. The easiest way to identify plastic is by locating three arrows forming a triangle with a specific number in the middle. These international codes offer clarity to plastic identification based on chemical makeup and the grading for recycling. Symbol 1 pertains to polyester and PET plastics.
What is a bendy plastic?
Low-Density Polyethylene (LDPE): Known for its excellent flexibility, clarity, and moisture resistance. Commonly used in food packaging (saran wrap, bread bags) and trash bags.
| Crushing Ability | 50-1200(kg/h) |
|---|---|
| Power | 4-45(kw) |
