The Tyrone TLPP Silent Central Granulator is a centralized plastic crushing and recycling machine developed by Guangzhou Tyrone Environmental Technology exclusively for the injection molding, blow molding and extrusion industries. Conventional granulators widely adopted by plastic processors generate deafening noise and flying dust. They create poor workshop conditions and uncomfortable working environments, and often exceed noise limits, failing environmental impact assessments and restricting night-shift production.
Optimized for full-machine acoustic performance, the TLPP silent granulator features a fully enclosed sound insulation structure. A modular sound insulation chamber is available as an option to further cut noise. While strictly controlling noise emission, it maintains powerful and consistent crushing performance, making it the preferred waste recycling equipment for injection, blow and extrusion molding plants.
1. Scope of Applicable Materials
This silent central granulator can crush a wide range of plastic waste from injection molding, blow molding and extrusion processes, including injection sprues and runners, offcuts from blow-molded goods, extruded sheet / pipe scrap, PP hollow boards, PET bottles, hard plastics such as ABS, PC and PS, thick & thin-gauge thermoformed parts, plastic pallets, plastic packaging scrap and most other plastic product residues. It satisfies waste handling demands of all types of plastic molding manufacturers.
2. Core Crushing System: Alloy Steel Cutters, Durable & Adjustable, Stable Quality of Final Granules
High-quality alloy steel cutters come as standard. Subjected to professional heat treatment, the blades deliver great toughness, wear resistance and impact resistance. Blade clearance is adjustable; worn blades can be reground and reused multiple times, drastically cutting long-term spare parts and maintenance costs.

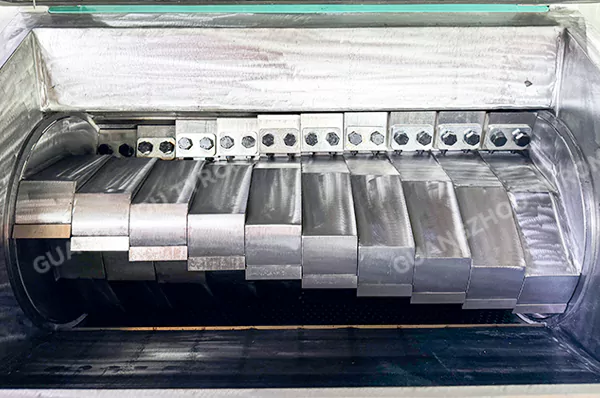

The cutter assembly adopts shear crushing principle. It cuts materials by blade shearing instead of impact hammering, delivering smooth cutting and low risk of jamming. Quick-change screens are fitted to freely adjust output granule size. Crushed granules are uniform with a low fine-powder ratio.
The heavy-duty machine frame boasts high rigidity and optimized heat dissipation design, enabling stable capacity for long-duration non-stop continuous production.
3. Fully Enclosed Sound Insulation Structure with Optional Sound Insulation Chamber, Two-Level Noise Reduction Solution
The machine body adopts a fully enclosed construction with built-in acoustic insulation components to block noise generated during crushing from spreading outwards. Measured noise level at 1 meter from the machine: approx. 80–90dB when crushing soft plastics; approx. 85–105dB for hard plastics.

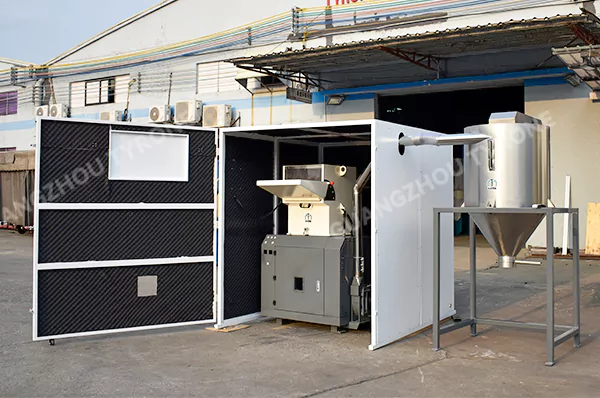

For projects with strict EIA requirements, factories adjacent to offices, staff dormitories or residential areas, or facilities requiring 24-hour night production, a custom modular sound insulation chamber is available for secondary acoustic isolation. The chamber uses composite sound-insulating wall panels filled with high-density sound-absorbing materials, together with silenced ventilation systems. It ensures noise reduction while maintaining motor heat dissipation to avoid overheating shutdown. Access hatches, observation windows, feeding and discharging conveying passages are reserved on the chamber for cutter maintenance and automatic conveying integration.
With the sound insulation chamber installed, noise can be further reduced by 20~30dB, stabilized below 70dB under most operating conditions.
✅ Why Choose a Silent Granulator?
Meet environmental assessment standards and avoid fines
Ordinary granulators produce high noise, which often exceeds factory boundary noise emission standards for industrial enterprises. Failed EIA acceptance may lead to rectification orders, production suspension and penalties. The TLPP silent granulator has built-in sound insulation. The optional sound insulation chamber directly meets noise testing requirements without large-scale factory wall renovation, shortening construction cycles and capital investment for smooth production.
Protect occupational health and improve workshop working experience
Long-term work under high-decibel noise may trigger hearing loss, tinnitus, fatigue and irritability, which are typical occupational health hazards. Silent granulators effectively lower workshop noise. Operators do not need to wear heavy earmuffs all the time. On-site staff can communicate normally, lowering occupational disease risks and improving workshop comfort.
Flexible equipment layout and shorter material transportation distance
Constrained by noise, ordinary granulators can only be placed in remote corners of workshops, requiring long-distance waste transportation. Silent models can be installed beside production lines for beside-the-press recycling or near office zones. Waste is crushed on-site to save manual handling labour and reduce warehouse space occupied by waste stockpiles.
Enable night / two-shift continuous production to boost plant capacity
Traditional granulators easily cause noise complaints from nearby residents during night operation and cannot run night shifts. With the optional sound insulation chamber, the silent granulator drastically reduces noise to comply with night-time factory boundary noise standards. Plants can operate two-shift or three-shift non-stop production to unlock full capacity.
Vibration damping extends service life; sound insulation chamber provides dust containment
The fully enclosed silent body plus heavy-duty vibration-damping base attenuates crushing vibration and reduces resonance damage to bearings, cutter shafts and frames, prolonging equipment service life. The matching sound insulation chamber also achieves sealed dust containment, limiting plastic dust dispersion across workshops, easing cleaning workload and maintaining tidy production areas.
Enhance corporate image and build standardized green workshops
Low-noise, clean workshop environments create advantages during factory audits and customer inspections. They demonstrate modernized and eco-friendly production management and help secure large customer orders.
4. Reuse Options for Material Crushed by Silent Granulator
Granules processed by the TLPP silent granulator are clean, uniform and low in fines. They can be directly recycled to realize waste valorization. Waste that would otherwise be discarded or hauled away at cost is converted into usable feedstock to cut raw material procurement costs.
1. Direct regrind feeding for production (injection / blow / extrusion molding)
Crushed sprue and offcut granules can be blended with virgin resin in certain ratios and fed directly into injection, blow or extruder machines to reproduce identical plastic products. This is the most widely adopted recycling method among injection molding factories.
2. Pelletizing to produce recycled plastic pellets
Crushed materials can be sent to pelletizing lines for melting, extrusion and cutting into standardized recycled pellets, which can be sold externally or used to manufacture other plastic goods.
3. Manufacture modified plastics
Crushed plastic scrap can be compounded with toughening, reinforcing, flame-retardant and other additives to produce modified plastics for home appliance housings, auto parts, packaging sheets and more.
4. Secondary processing of downstream plastic products
Recycled granules can be used to produce plastic pallets, pipes, hollow sheets, packaging containers, plastic fillers and many other plastic products for resource circulation.
5. Rich Optional Auxiliary Equipment & Custom Non-Standard Solutions
Multiple auxiliary units are available to build a complete automatic recycling line as required:
・Belt conveyor feeder
・Immediate material recovery system
・Dust collection system for immediate recovery
・Metal separator (removes metallic contaminants from scrap to protect cutters)
・Powder screening system
Custom non-standard projects are supported based on customer’s material type, throughput, workshop layout and noise limit requirements, delivering integrated turnkey solutions combining crushing, conveying, dust collection and metal separation.
Product Summary
The Tyrone TLPP Silent Central Granulator adopts a fully enclosed native sound-insulated body with optional sound insulation chamber for further noise reduction, fundamentally resolving the pain points of noise nuisance and difficult EIA approval of conventional granulators. Premium alloy steel cutter assemblies guarantee stable and efficient crushing to produce uniform recycled material with low fines. Crushed waste can be directly fed back to production lines, pelletized or modified to greatly reduce raw material costs. Multi-layer safety protection safeguards production. A full range of auxiliary machines supports automatic line integration and non-standard customization.
Widely deployed in injection molding plants, blow molding factories, extrusion product manufacturers and plastic recycling enterprises, the machine enables on-site valorization of plastic scrap to turn waste into resources and build low-noise, clean modern green recycling workshops.
Guangzhou Tyrone Environmental Technology specializes in plastic crushing & recycling equipment and holds multiple patents. Our machines serve customers across 56 countries worldwide. We provide integrated customized crushing and noise reduction packages including main granulators, sound insulation chambers and supporting auxiliary machinery.
