Plastic Thermoforming Scrap Resource Recycling | TLV & TLP Granulators, Differentiate Thin & Thick Materials to Improve Reclaimed Material Quality.
Thermoformed parts are widely used in packaging, electronics, hardware, toys, medical, food processing and other industries, including thermoformed trays, thick-wall thermoformed housings, full-sheet thermoforming sheets, thermoforming rolls, large quantities of trimmings and defective products. As production capacity rises year by year, enterprises generate massive volumes of waste thermoformed parts. Random stockpiling, incineration or disposal not only occupies factory space and causes severe environmental pollution, but also results in the loss of large amounts of high-quality plastic resources.
Thermoformed products are divided into thin-wall and thick-wall types by structure. Their physical properties vary greatly, and general-purpose granulators cannot handle both. Common long-standing problems include knife wrapping, material blockage, uneven crushing, excessive fine powder, high material loss and reclaimed materials unfit for direct reuse.
To address pain points in thermoforming scrap recycling, Tyrone Machinery has developed the TLV series granulator and TLP series granulator. Both models are equipped with Tyrone 3rd-Generation Dynamic Intelligent Energy-Saving System. They achieve classified precision crushing for thin-wall and thick-wall thermoformed parts, greatly boosting crushing efficiency and pellet quality while reducing no-load power consumption. Waste thermoformed parts are converted from industrial scrap into marketable reclaimed raw materials, helping enterprises cut costs, improve efficiency and realize resource recycling.

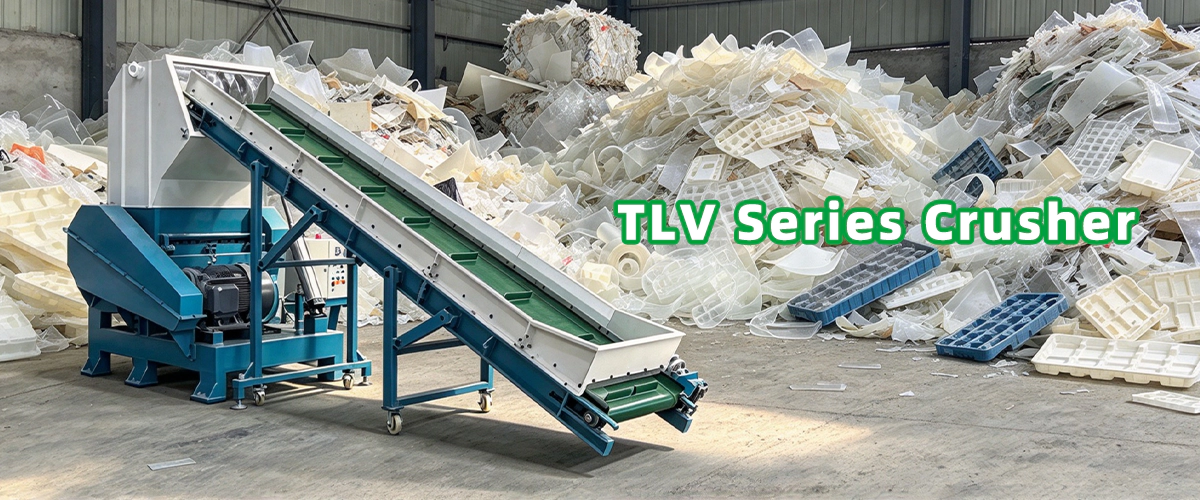

I. Thin-wall Thermoformed Parts: Dedicated TLV Series Granulator to Resolve Wrapping Issue
Thin-wall thermoformed parts are commonly made of PP, PE, soft PVC, flexible PET and so on. Typical materials include thin thermoformed trays for electronic components, chip connector inserts, food thermoformed boxes, fruit & fresh produce trays, transparent hardware blister covers, foldable thermo packaging, thin blister inserts for toys & cosmetics, disposable blister packs, full rolls of PET/PP thermo sheets and production-line thin trimmings & scrap sheets. Characterized by thin gauge, high toughness, easy stretching and wrapping, these materials are prone to shaft wrapping, knife entanglement and blockage shutdown when processed by conventional high-speed impact & tearing granulators. The output contains excessive fine powder and long strips with uneven particle size, wasting plenty of raw materials and failing to feed pelletizing and reproduction lines.
The Tyrone TLV series granulator is specially designed for thin-wall, high-toughness thermoforming scrap. It adopts proven V-shaped oblique cutting knives. Pure shearing cutting replaces traditional tearing crushing. Interlocking knives cut materials layer by layer, gently and efficiently severing thin thermoformed parts and fundamentally eliminating wrapping, material accumulation and jamming. With optimized operating speed, low noise and low vibration, the machine delivers outstanding continuous stability for large-volume non-stop recycling in factories.
TLV Core Performance & Selling Points
1.3rd-Generation Dynamic Intelligent Energy-Saving System:

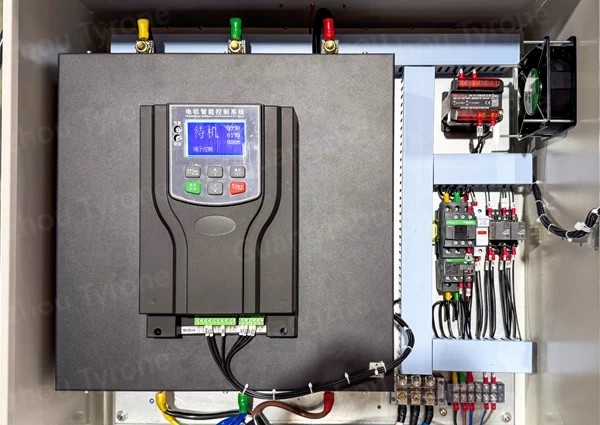

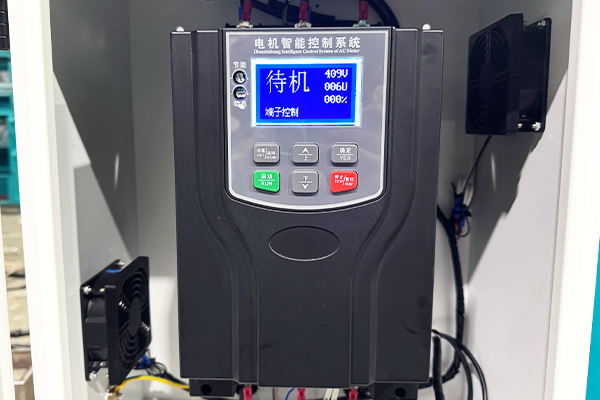

Different from conventional star-delta starters running at full power without real-time adjustment, this system is fitted with high-precision sensor arrays. It identifies material conditions and equipment load within milliseconds, and automatically matches rotating speed, torque and power output to realize on-demand energy supply and dynamic voltage & current reduction. Field tests on various production lines show an overall energy saving rate of 20%-65% compared with traditional star-delta granulators.
2.V-shaped Knife Design:

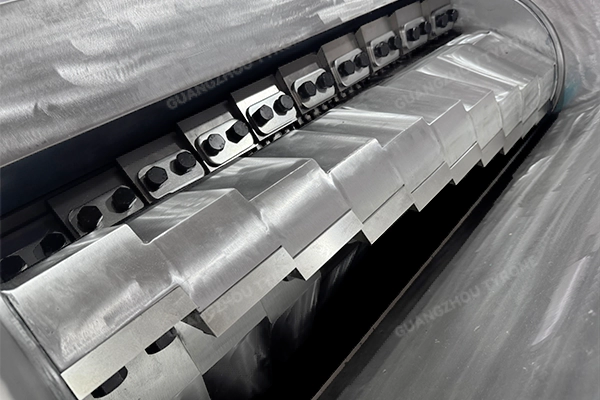

High-hardness alloy knives with wear-resistant cutting edges. Shearing cutting avoids stretching thin thermo sheets and prevents long strips from wrapping the shaft. Optimized knife holder layout with adjustable cutting gap to fit thermo sheets of different thickness. Knives are easy to disassemble, sharpen and replace without long downtime.
3.Independent External Bearing Structure:
Bearing housing is fully isolated from the crushing chamber. Dust and plastic fines cannot access bearing positions to prevent bearing wear and seizure. It extends bearing service life and greatly reduces failure rate and maintenance cost.
4.Quick-open Crushing Chamber:
The chamber can be rapidly opened without full machine disassembly for cleaning, knife and screen mesh replacement. Cleaning time is cut by 70% when switching between different scrap types, suitable for alternating processing of multiple thermoforming scrap varieties.

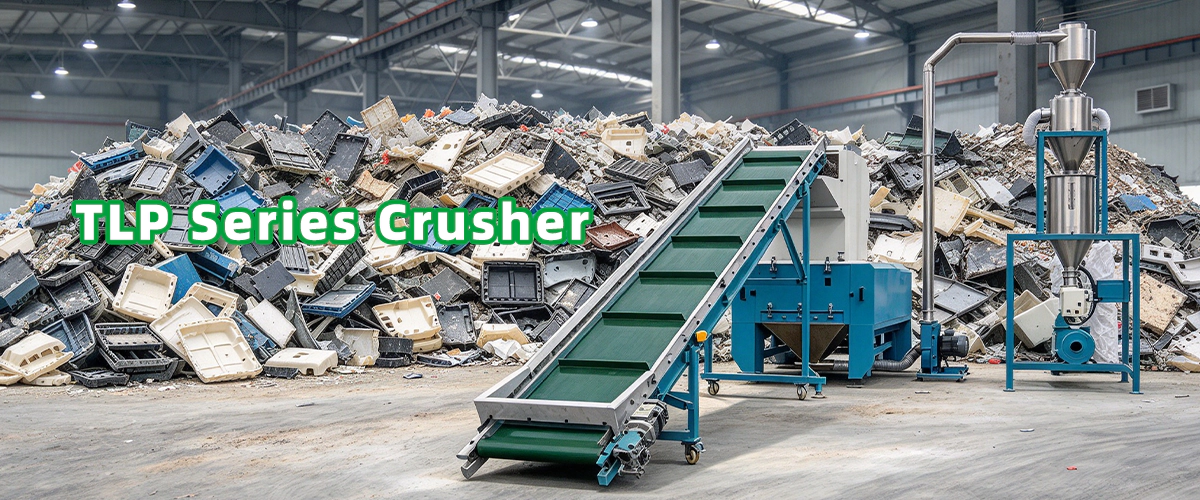

II. Thick-wall Thermoformed Parts: Preferred TLP Series Granulator for Heavy-duty Crushing
Thick-wall thermoformed parts are heavy-gauge molded products made of rigid PVC, ABS, PET, thick PS sheets and modified hard plastics. Typical materials include heavy-duty industrial thermoformed trays, thick thermo equipment guard housings, automotive interior thermoformed components, fixture positioning thermo bases, thick sheet thermo runners, luggage inner shells, home appliance thermo liners, thick advertising thermo sheets and all types of discarded thick-wall thermoformed parts. These materials feature large wall thickness, high hardness and strong impact resistance, which place extreme requirements on knife strength, crushing force and frame rigidity. Conventional granulators often suffer chipped knives, rolled edges, incomplete crushing, material bouncing and severe vibration when processing thick thermo scrap.
purpose-built for high-hardness thick-wall thermoforming scrap. It adopts high-strength alloy flat knives with combined impact + shearing crushing principle. The knives feature high hardness, impact resistance and wear resistance, handling all kinds of thick thermo scrap in one pass with no large leftover chunks and no idle repeated rotation. Its crushing efficiency outperforms general-purpose granulators by a large margin.
TLP Core Performance & Selling Points
1.3rd-Generation Dynamic Intelligent Energy-Saving System:
This model is also equipped with the 3rd-Generation Dynamic Intelligent Energy-Saving System. It dynamically adjusts power output according to impact load of thick materials to avoid power waste caused by continuous high-power idling. It significantly reduces power consumption per ton under long continuous crushing conditions, delivering 20%-65% energy saving versus traditional star-delta granulators.

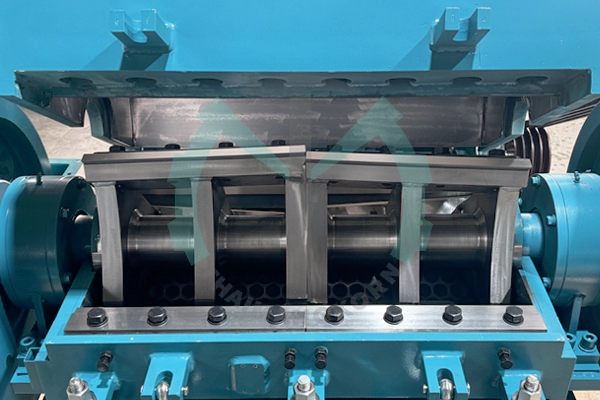

2.High-impact Alloy Flat Knife Set:
Knives go through special heat treatment for impact resistance without chipping, combining impact crushing and shearing functions. Thick, hard and large thermo housings can be crushed and cut in one pass. Reinforced thickened knife shaft offers strong torsion resistance and resists deformation under impact of large materials.
3.Heavy Reinforced Frame & Large Feed Hopper:
The whole machine uses thick steel plates for low vibration during high-speed crushing. Widened and heightened feed inlet accepts full-size thick thermo parts and large housings directly without manual pre-cutting, saving labor cost for preprocessing. Double-layer sound-insulated feed hopper effectively reduces crushing noise and improves workshop environment.
4.Comprehensive Safety Protection:
Anti-rebound baffle at feed inlet prevents large pieces from bouncing back and injuring operators. Emergency stop button, motor overload protection and material level alarm form multiple safety interlocks. Power cuts off automatically when opening the chamber for maintenance to protect operators.
III. Core Value & Wide Application of Crushed Thermoformed Reclaimed Material
Many enterprises treat waste thermoformed parts merely as scrap. In fact, thermoforming raw materials feature high purity, low impurity and stable properties. Reclaimed pellets precisely crushed by Tyrone machines are clean with uniform particle size and minimal loss, holding high reuse value and can directly enter industrial cycles to create extra revenue for enterprises. Typical applications are as follows:
1.Re-pelletizing for sale as secondary raw materials.Thermo scraps processed by TLV/TLP granulators contain little fine powder or long strips, with uniform and clean particles. They can be directly fed into washing, dewatering and pelletizing lines to produce high-quality recycled plastic pellets. These pellets can be sold to partially replace virgin raw materials, serving as a core profit source for plastic recyclers and greatly improving scrap added value.
2. In-house recycling for production to cut raw material cost.Thermo trimmings, defectives and scraps from manufacturers can be crushed and reused in their own production. Reclaimed thin-wall thermo materials can be blended to produce general packaging blisters, soft films and plastic accessories. Reclaimed thick-wall thermo pellets can be used for industrial trays, plastic housings, base plates and plastic profiles, effectively reducing virgin material purchase ratio and cutting production cost.
3. Manufacturing plastic auxiliary and filling materials.Reclaimed scraps of slightly lower quality can be used as plastic fillers, injection molding auxiliaries and extrusion filling materials for plastic spacer blocks, plastic fittings, daily plastic goods, garden plastic products and pipe auxiliaries, achieving nearly 100% scrap utilization with minimal waste.
4. Compliant environmental disposal to avoid environmental risks.Thermoformed parts occupy storage space and are hard to degrade, causing solid waste pollution if discarded randomly. Centralized crushing and volume reduction greatly shrink scrap volume for easier storage, transportation and compliant disposal. It helps enterprises standardize solid waste management, meet environmental production standards, avoid penalties and achieve green manufacturing.
IV. Precise Selection Guide: Quick Model Matching for Thermo Scrap Recycling
Thin-wall, tough and wrapping-prone thermoformed parts: thin electronic thermo trays, food & fresh blister trays, blister packs, thermo rolls, thin thermo packaging, thin-wall thermo trimmings → Choose Tyrone TLV series granulator equipped with 3rd-Generation Dynamic Intelligent Energy-Saving System. Anti-wrapping, low powder, high material utilization, ideal for large-volume thin-wall thermo scrap recycling.
Thick-wall, high-rigidity thermoformed parts: heavy-duty industrial thermo trays, equipment guard housings, automotive interior thermo parts, home appliance liners, thick sheet runners, thick advertising thermo sheets → Choose Tyrone TLP series granulator equipped with 3rd-Generation Dynamic Intelligent Energy-Saving System. High crushing force, impact resistance, no knife chipping, more thorough crushing of thick materials.
Conclusion
The core of thermoformed scrap recycling is not simply crushing materials, but professional crushing by wall thickness to preserve pellet quality, raise value and reduce loss. Tyrone TLV and TLP granulator series, fitted with the 3rd-Generation Dynamic Intelligent Energy-Saving System, are differentially designed according to physical properties of thin and thick thermo parts. They accurately tackle long-standing industry pain points including wrapping, blockage, poor crushed quality and high loss. The high-quality crushed reclaimed materials have wide applications for internal use, resale and cyclic reproduction. They truly turn industrial scrap into valuable resources, helping enterprises meet environmental standards, lift production capacity, cut costs and boost profits, and support green circular development of the plastics industry.
